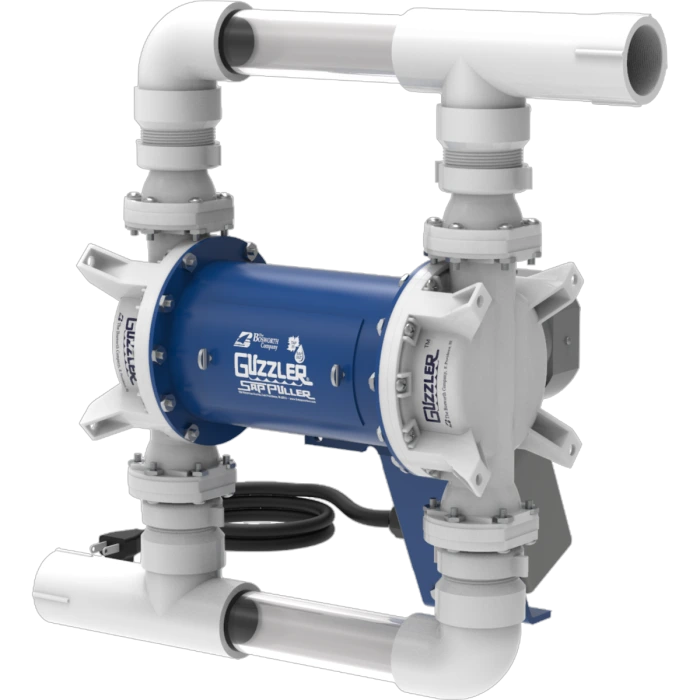

120 vac motorized Double “500” style Guzzler twin pump system. Wetted components made of NSF‐approved materials or better. Buna diaphragm; umbrella valves. 1‐1/4” Female (tapped) inlet/outlet ports. Wired with on/off switch & 6’ power cord. Includes two spare diaphragms.
- Ideal for vacuum production on up to 800 taps
- Available with 120 vac, 12 vdc or 24 vdc motor
- 28 in Hg vacuum (wet valves)
- 25 in Hg for 24 vdc motor
- Dry valves: 20 in Hg
- Capacity: 19.8 gpm (1.5 cfm @ 15 in Hg)
- No releaser required
- Creates vacuum and transfers fluid
- Pump body, flanges, diaphragm and umbrella valves made of FDA-approved materials
- Reversible manifolds with 1-1/4 in Female inlet/outlet ports
- Standard diaphragm: Buna-N
Optional: Santoprene
Performance Dependent on configuration
Max Pressure: 2.0 psi / 0.1 bar
Lift/Head: 20.0 / 4.0 ft
Capacity: 19.8 gpm / 74.9 lpm
Volume per Stroke: 1.10 qt / 1.00 l
Max Service Temp: 140° F / 60° C
