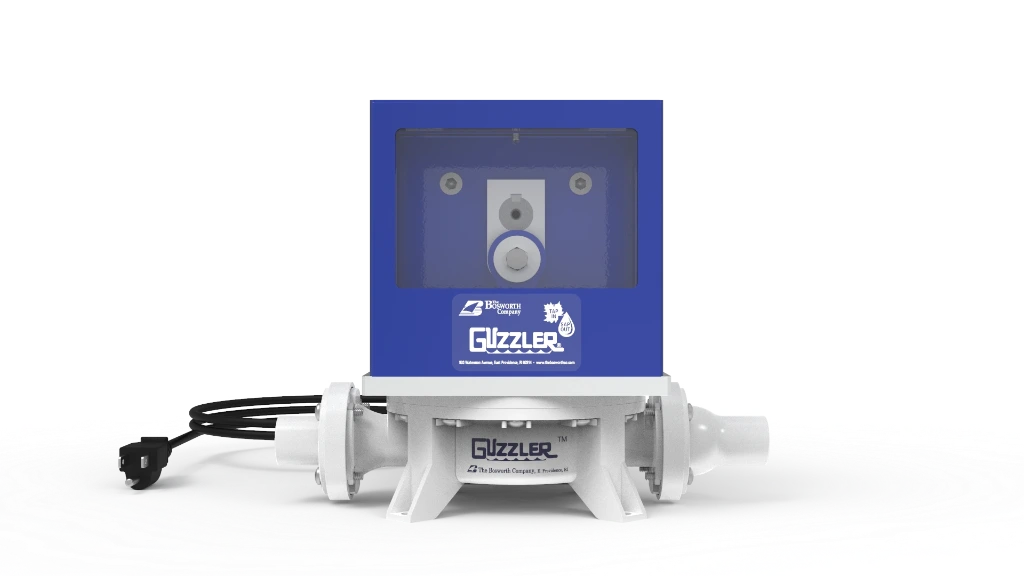

120 vac motorized “400” style Guzzler. Wetted components made of FDA‐approved materials. Buna diaphragm; umbrella valves. 3/4” threaded (male) inlet/outlet ports. Includes spare diaphragm.
- Ideal for vacuum production on up to 400 taps
- Available with 120 vac, 12 vdc or 24 vdc motor
- 28 in Hg vacuum (wet valves)
- 25 in Hg for 24 vdc motor
- Dry valves: 20 in Hg
- Transfers at 9.9 gpm (0.7 cfm @ 15 in Hg)
- No releaser required
- Creates vacuum and transfers fluid
- Pump body, flanges, diaphragm and umbrella valves made of FDA-approved materials
- Available with 1” Smooth, 3/4” F, 3/4” M, 1-1/4” F, 1-1/2” Smooth and 1-1/2” M ends
- Standard diaphragm: Buna-N
Optional: Santoprene
